PCB for C460 body and Schoeps style circuit.

Page about the C460 boards

Documentation in progress - in the meantime ask me if you have questions

email me at parenthetical at this domain

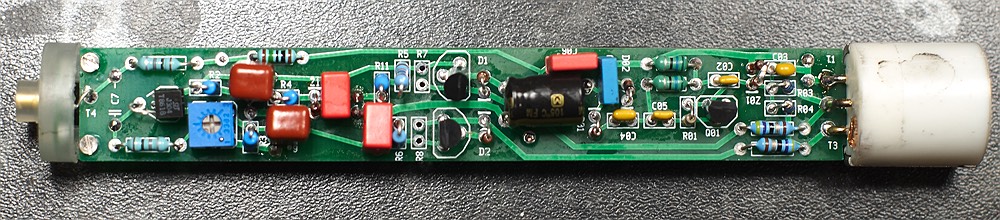

board for C460 mic

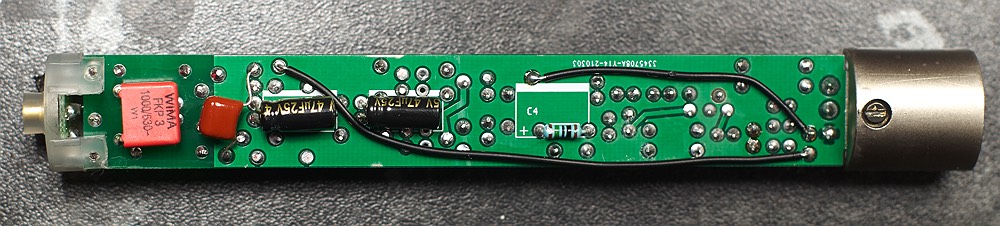

board for C460 mic

I will put up the schematic when I get around to it, but it is just a schoeps circuit, plus a single polarisation generator.

Thsi board is for fitting a classic Schoeps circuit into a AKG C460 or C480 body. If not familiar with this circuit please read my explanation here.

Since a C460 is a true condenser mic the capsule requires a polarisation voltage. This board therefore has a polarisation voltage generator included.
